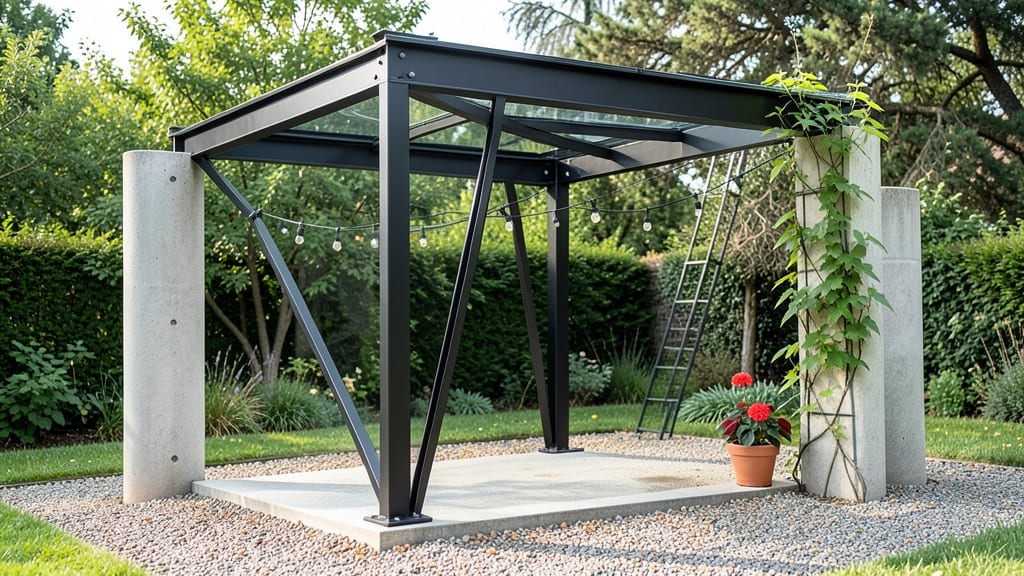

Concrete pillars for garden structures support pergolas, trellises, and heavy planters with weight capacities ranging from 200 to 1,000+ pounds per pillar, based on their diameter, height, and reinforcement. Proper footing depth and spacing prevent structural issues over time.
When planning your garden, these sturdy supports are essential for anything from climbing roses to heavy wooden pergolas. The weight capacity varies dramatically—thinner, shorter pillars handle lighter loads like 100-pound planters, while thicker, reinforced ones can bear 1,000+ pounds for heavy trellis systems. What makes the difference?
Reinforcement with rebar and proper footing depth (typically 12-18 inches) create a stable base that resists shifting soil. 💫 For clay-heavy soils, I always recommend deeper footings to prevent seasonal settling, while sandy soils may need wider footings for better distribution.
Beyond weight limits, the spacing between pillars matters too. For pergolas, I typically space them 6-8 feet apart, while trellises can go up to 10 feet between supports.
This ensures even weight distribution and prevents sagging over time. The key is balancing structural integrity with your garden's aesthetic—no one wants pillars that look too industrial!
💡 In This Article
- Calculating Concrete Pillar Weight Limits for Garden Structures
- Step-by-Step Guide to Installing Garden Concrete Pillars
Calculating concrete pillar weight limits for garden structures
Concrete pillars derive their strength from three core factors: diameter, height, and reinforcement. A standard 6-inch diameter pillar can support about 200-300 pounds, while increasing to 8 inches boosts capacity to 500-700 pounds.
The height matters too—taller pillars (over 6 feet) need additional rebar reinforcement to prevent bending under load. This is why pergola pillars often use #4 rebar vertically and horizontally at joints, creating a cage that distributes weight evenly. 🔥
Footing depth is the unsung hero of stability. In clay soils, footings should extend 12-18 inches below grade to prevent seasonal expansion/contraction, while sandy soils require 16-24 inches for proper weight distribution.
The formula for basic load capacity is: Pillar Capacity = (Diameter² × Footing Depth × Concrete Strength) ÷ Safety Factor (3-4 for DIY projects).
For example, an 8-inch pillar with 18-inch footing in 3000 PSI concrete handles roughly 800 pounds—but real-world loads should stay 30-40% below this theoretical max.
Soil type dramatically affects performance. Clay soils compact well but expand when wet, creating upward pressure that can lift pillars. Sandy soils drain quickly but offer less resistance, requiring wider footings (up to 2 feet across) for stability.
I've seen 12-inch pillars fail in clay when footings weren't deep enough, while identical pillars in sand held 200 pounds more due to better weight distribution. Always test soil by digging a 1-foot hole—if water pools, clay is present; if it drains instantly, you're dealing with sand. ✨
Reinforcement patterns matter just as much as quantity. Vertical rebar should extend 12 inches into footings and 6 inches above concrete level for connections. Horizontal rebar at 1/3 and 2/3 heights creates a "belt" that prevents cracking under lateral loads (like wind pushing a pergola).
For heavy structures (over 500 pounds), I recommend #5 rebar spaced 12 inches apart in a grid pattern within the pillar form. This creates a structural "cage" that handles both vertical and horizontal forces.
Pro tip: Account for dynamic loads. A pergola with 100-pound roofing panels plus 200-pound snow load in winter needs pillars rated for 1,200 pounds total—not just the static weight. Wind gusts can double lateral forces, so always multiply your structure's weight by 1.5 for safety.
For example, a 300-pound trellis should use pillars rated for at least 450 pounds to handle wind and seasonal shifts. 💫
Don't overlook the connections. The weakest point is often where pillars meet beams or trellis frames. Use ½-inch galvanized bolts or ½-inch lag screws with ½-inch washers to secure connections. For maximum strength, embed ½-inch threaded rod into the concrete during pouring, then attach beams with heavy-duty brackets.
This creates a monolithic connection that handles 500+ pounds of downward force without flexing.
